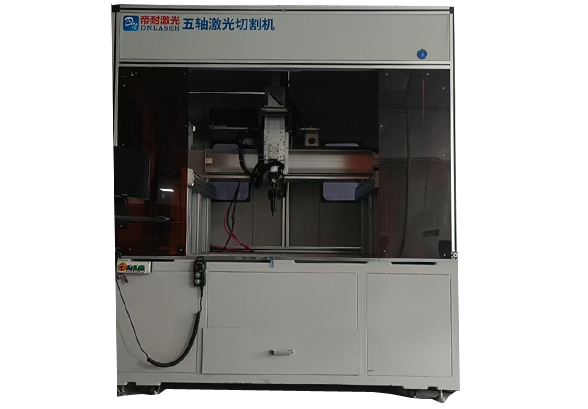

Five axis laser cutting machine

Focused on the industry for 8 years, Denai Laser focuses on expertise

价格咨询 >>

Porducts

Plastic laser welding machine

- Trajectory laser welding plastic machine - Quasi synchronous laser welding plastic machine - Deep penetration laser plastic welding equipment - Cylindrical plastic laser welding machine - Laser axial plastic welding machine - Transparent material plastic welding machine - Synchronous plastic laser welding machine - Bumper laser cutting and welding integrated machine
Laser engraving machine

- Production Line Marking Machine - Metal laser marking machine - Non-metallic laser marking machine - UV laser marking machine - Picosecond laser marker - Three-dimensional laser engraving machine - Wafer soft (hard) engraving machine
Full-field laser cleaning machine

- Platform laser cleaning machine - Handheld laser cleaning machine
Precision laser cutting machine

- Gate laser cutting machine - Fine laser cutting machine - Dumbbell laser engraving machine - Polymer Material Laser Cutting Machine (SMC) - Five axis laser cutting machine

留言咨询

Product Overview

The principle of five-axis laser processing equipment is to add two rotating axes, A and C, to the existing three linear axes, X, Y, and Z, of a CNC machine tool, thereby enabling the processing head to obtain two degrees of freedom in A and C axes, which rotate (or oscillate) around the two linear axes, X and Z, respectively. The five axes mentioned above are controlled by the Dinai laser five-axis control system to achieve five-axis linkage, allowing the laser head to remain perpendicular to the processed surface of the workpiece during processing, thus achieving the so-called "normal processing". Therefore, it is particularly suitable for processing workpieces with particularly complex surface shapes, but at the same time, machining is necessary to ensure accuracy.

The Dine laser five-axis equipment also features the following characteristics:

1. Apart from completing 3D cutting of workpieces, it can also be used for flat panel cutting. Additionally, on this platform, welding module switching can be achieved, allowing it to be expanded into a laser welding platform, thus realizing multiple functions in one machine. With 24-hour uninterrupted stable production, it is suitable for mass production.

2. In traditional articulated robotic arms, the joint axes are interconnected and arranged sequentially from the fixed base of the robotic arm to the processing head. This arrangement can lead to cumulative accuracy errors, resulting in a geometric increase in the final processing product error. The three-dimensional five-axis machining machine features independent axes and a gantry dual-drive structure with high stability, ensuring long-term high-speed, high-precision, and stable cutting.

3. The gantry dual-drive structure features an integrated and welded bed frame, a high-rigidity and high-dynamic-response crossbeam, as well as a dual-motor drive system utilizing dedicated guide rail bases and linear guide rails with dual-sided gear racks. It allows for dual-station operation, dual laser head operation, and even customization according to production needs.

Product Features:

Gantry-style mechanism, with a moving crossbeam and compact structure, is specifically designed for cutting hot-formed parts. The three-dimensional head achieves unlimited n*360° rotation and is equipped with a rotating exchange worktable, ensuring high precision and efficiency

Product parameters

name/model	DNWZ2000CO2	DNWZ3000FC
size	2000×3000mm (Customizable)	1500X3000mm (customizable)
laser	CO₂	Fiber
laser power	2000 watts	3000 watts (customizable)
cutting materials	Various polymer materials such as PP, PE, ABS, SMC, PCM, carbon fiber, leather, etc	Cutting various metal materials as well as some non-metals such as SMC, black PCM, etc
workstation quantity	Single/Dual Workstation
z-axis travel	600mm (customizable)
Five-axis travel/accuracy	Accuracy of ±135° on A axis is ≤1 arc minute	Accuracy of A-axis ±135° is ≤1 arc minute
	Accuracy of A-axis ±135° is ≤1 arc minute	Accuracy of A-axis ±135° is ≤1 arc minute
complete Machine Tool	Thick-walled square steel is welded, with thickened steel strips welded on the machining surface. Reinforcing ribs are added to the bed frame and gantry sections. (Designed and manufactured through finite element analysis) All machining surfaces of the bed frame and gantry undergo CNC five-sided milling for shaping
complete solution	Adopt five-axis linkage	Adopt five-axis linkage
control system	Dinai laser control system
processing speed	5m/min-100m/min (The processing speed is determined based on the laser power and material used by the customer)
idle speed	X/Y轴40m/min,Z轴15m/min
Repeatability accuracy	±0.03mm/1m
trajectory accuracy	±0.03mm/1m
lubrication system	Automatic oiling system (high-power gear pump, volumetric oil injector. Each injection is 0.02ML)
dust control system	The slider is equipped with a dust-proof brush and a complete vacuum system
Applicable software code	International commonly used G-code such as Precise Carving/Wentai/UG/TYPE3/MASTERCAM
working voltage	380V,50/60HZ,50A
Gas source requirements	0.6-0.8Mpa
periphery	Adopt sheet metal ring for sealing
Temperature	0-30°
humidity	≤80%
laser grade	Level 4
cooling system	water cooling
