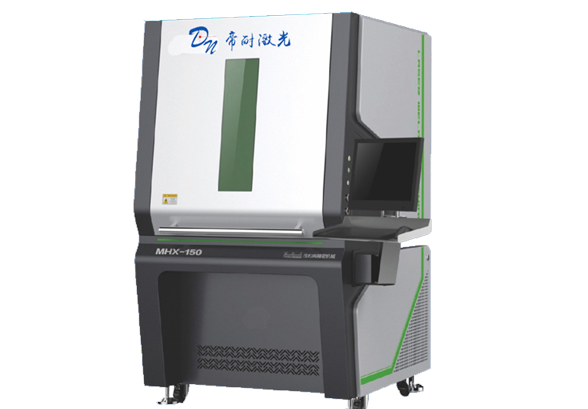

HomePicosecond laser marker
Focused on the industry for 8 years, Denai Laser focuses on expertise
Using ultrashort pulse (picosecond) lasers, fine marking can be performed on various materials, especially transparent and highly reflective materials such as ultra-thin liquid crystal glass. It has the advantages of high precision, minimal heat-affected area, no burrs or residue on the marking edge, and smooth edges.
价格咨询 >>
Porducts
-
Plastic laser welding machine- Trajectory laser welding plastic machine - Quasi synchronous laser welding plastic machine - Deep penetration laser plastic welding equipment - Cylindrical plastic laser welding machine - Laser axial plastic welding machine - Transparent material plastic welding machine - Synchronous plastic laser welding machine - Bumper laser cutting and welding integrated machine
-
Laser engraving machine
-
Full-field laser cleaning machine
-
Precision laser cutting machine
留言咨询
Product Overview
Using ultrashort pulse (picosecond) lasers, fine marking can be performed on various materials, especially transparent and highly reflective materials such as ultra-thin liquid crystal glass. It boasts high precision, minimal heat-affected areas, and produces marking edges free of burrs, residue, and with smooth edges. Additionally, it can imprint QR codes and numerical-letter combinations inside various transparent materials, providing excellent anti-counterfeiting effects and suitable for fine marking of high-end products.
Features of the equipment
◆ High machining accuracy and good long-term stability;
◆ The processing line is narrow, with high quality and a small heat-affected zone;
◆ It can process various QR codes and numbers combined with letters and numbers, as well as various irregular shapes and special-shaped patterns;
◆ The minimum processable QR code size is 0.1mm in length and width.
Features of the equipment
◆ High machining accuracy and good long-term stability;
◆ The processing line is narrow, with high quality and a small heat-affected zone;
◆ It can process various QR codes and numbers combined with letters and numbers, as well as various irregular shapes and special-shaped patterns;
◆ The minimum processable QR code size is 0.1mm in length and width.
Product parametersName | parameter value | ||
Type | DNIRM5PS | DNIRM10PS | DNIRM20PS |
Pulse width(ps) | <10 | <10 | <10 |
Max power(W) | 5 | 10 | 20 |
Q-switching frequency(KHZ) | 1000 | 1000 | 1000 |
Min line width for marking(μm) | 3 | 3 | 3 |
Marking speed (characters/second) | 500 | ||
repeatability accuracy(mm) | ±0.005 | ||
Engraving Rangemm | 110×110或180×180 | ||
Size(mm) | 1000×1000×1200 | ||
Weight(kg) | 300 | ||
Power requirements | 220V/50Hz/20A | ||
Cooling method | water cooling | ||
Machine power(KW) | 1.5 | 2.0 | 3.0 |
Application Areas
Laser welding and cutting solutions in the field of battery new energy industry
Laser welding and cutting solutions in the medical device industry
Laser Welding and Cutting Integrated Solution for Plastic Packaging Industry
Laser cutting and welding solutions for the semiconductor industry
Laser welding solutions for the automotive industry
Laser welding and cutting solutions for the electronics industry
Sample Display
